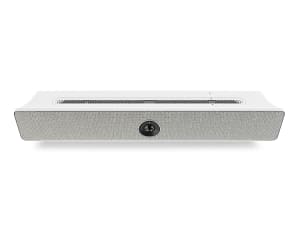

Cisco Room Kit Mini

WF40

The Cisco Room Kit Mini is a powerful video collaboration bar that extends huddle space collaboration with a 120º camera, noise suppression, and auto framing of participants.

Product details
Price options
All prices are exclusive of VAT.
Shipping: 4.99 €
1-3 business day delivery
Cisco Room Kit Mini
  / month
Monthly payment One time payment
Fast and free delivery in 1-3 business days
Fair and easy returns during rental period
Simply pay by credit card
Product Information
For premium hybrid work in small meeting rooms.

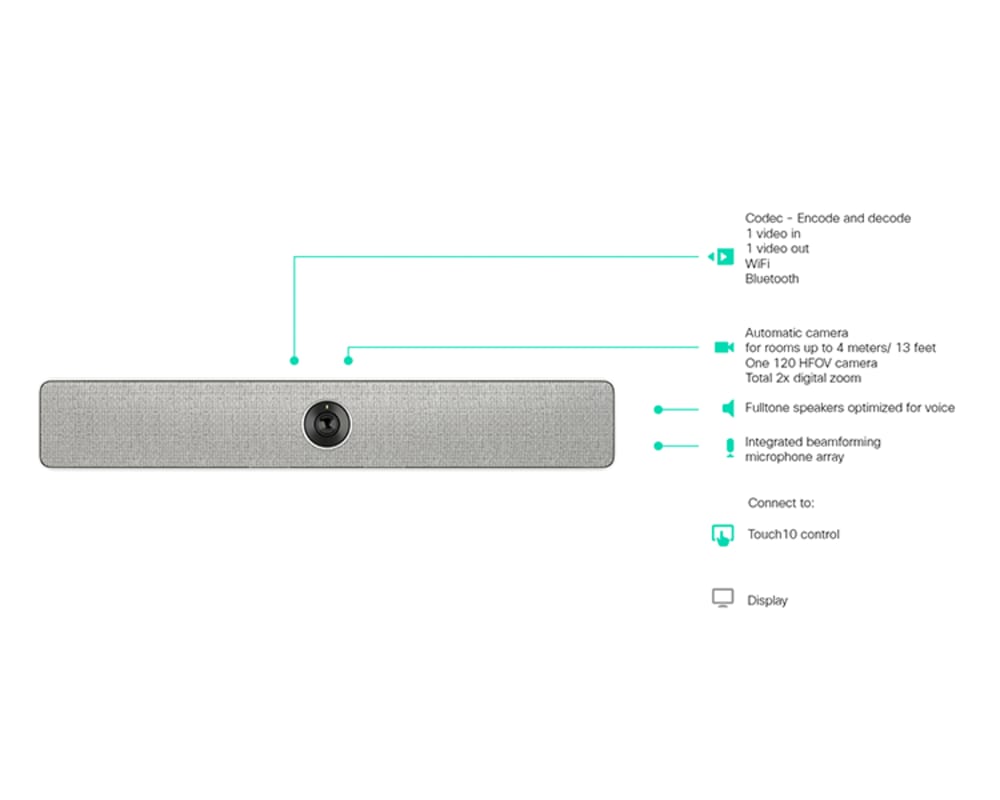

The Cisco Room Kit Mini is a powerful video collaboration bar that extends your meeting room. Bringing more intelligence and usability to huddle rooms and spaces by combining camera, microphones and speakers in one single device.

Smart meetings. For strong teams.

Delivering intelligent capabilities with a powerful integrated 120º camera and microphones. Automatic framing and noise suppression reduces meeting disruptions. Enjoy high-quality audio with full range speaker plus dual woofers.

Easy to use and manage.

Built for both cloud and on-premises deployment, the device offers registration flexibility. Easily joining any meeting - USB passthrough enables interoperability with any cloud service provider.

Powerful presentations. Easy content sharing and collaboration.

Sharing 4K content optimizes the quality of any presentation. Participate easily in whiteboarding sessions and connect wirelessly.

Smart rooms. Improving workflow.

Personalizing meetings with APIs and macros. Tight integrations with screens enhance user interactions and boost productivity. For a smart room that meets your needs.

Technical details

Video features
Camera Overview:
  •  4K UltraHD camera
  • Supports up to 60 fps (max 30 fps with best overview enabled)
  • 8 MP image sensor
  • 1/1.4 CMOS
  • 5 x zoom
  • f/1.4 aperture
  • 120° horizontal field of view
  • Auto framing (face detect)
  • Auto brightness, and white balance
  • Focus distance 1 m to infinity
Video standards:
  • H.264, H.265
Video inputs:
  • One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
  • Consumer Electronics Control (CEC) 2.0
Dual stream:
  • One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60
  • Consumer Electronics Control (CEC) 2.0
Wireless sharing:
  • Webex app (up to 3840 x 2160p5)
  • Cisco Intelligent Proximity client (up to 1920 x 1080p5)
Video outputs:
  • Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
  • Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p)
  • Consumer Electronics Control (CEC) 2.0
Audio features
Audio standards:
  • G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Audio features:
  • High-quality 20 kHz audio
  • Prepared for subwoofer (line out)
  • Prepared for inductive loop (line out)
  • Automatic Gain Control (AGC)
  • Automatic noise reduction
  • Active lip synchronization
Audio inputs:
  • Two microphones, 4-pin mini-jack
  • One audio in from HDMI
  • Internal microphone
Speakers (integrated):
  • High-quality speakers: five speakers in balanced configuration
  • Frequency response 70 Hz to 20 kHz
  • Amplifier power: 24W
  • Max output level SPL 86 dB
Audio outputs (external)
  • 1 line out mini-jack (stereo)
Network features
  • DNS lookup for service configuration
  • Differentiated services (Quality of Service [QoS])
  • IP-adaptive bandwidth management (including flow control)
  • Automatic gatekeeper discovery
  • Dynamic playout and lip-sync buffering
  • H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
  • RFC 4733 DTMF tones in SIP
  • Date and time support using Network Time Protocol (NTP)
  • Media adaptation and resilience
  • Uniform Resource Identifier (URI) dialing
  • Dynamic Host Configuration Protocol (DHCP)
  • 802.1X network authentication
  • 802.1Q Virtual LAN
  • 802.1p (QoS and Class of Service [CoS])
Security features
  • Management using HTTPS and SSH
  • IP administration password
  • Menu administration password
  • Disable IP services
  • Network settings protection
  • Privacy cover

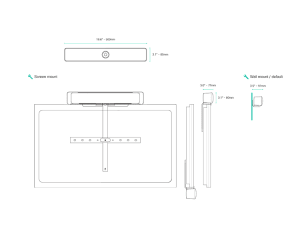

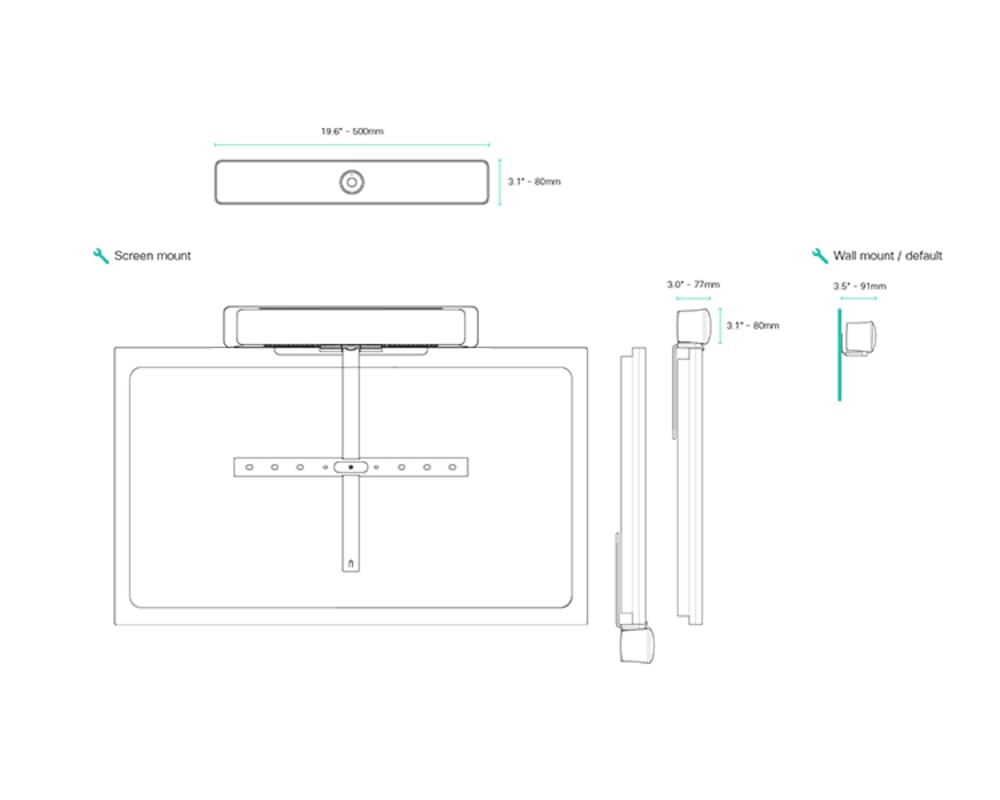

Size (H x W x D)
Device:
  •  8.1 cm x 50 cm x 7.7cm (3.2 in x 19.7 in x 3 in)
With packaging:
  • 32.6 cm x 60.5 cm x 21.6 cm  (12.8 in x 23.8 in 8.5 in )
Weight
Device:
  •  1.5 kg (4 lb)
With packaging:
  • 3.2 kg (7 lb)
Software and user interface
Software compatibility:
  • Cisco Collaboration Endpoint Software Version 9.14.5 or later, and Cisco Webex RoomOS
Network interfaces:
  • One Ethernet (RJ-45) 10/100/1000 for LAN
  • One Ethernet (RJ-45) for Cisco Touch 10 direct pairing
  • Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMO
  • Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz.

  • Using a Wi-Fi connection is a flexible option, however an Ethernet connection is always preferred for high performance.
Other interfaces:
  • 1 USB 2.0 port type A
  • 1 USB 2.0 port type C
  • 1 USB port
  • Factory reset pinhole
Cisco applications
Cisco Unified Communications Manager (CUCM)
  • Native registration with CUCM
  •  Requires CUCM Version 10.5.2 or later with device pack for Room Kit
Cisco Expressway:
  • Native registration with Expressway
Cisco Webex Service
3rd party applications
Third-party H.323 Gatekeepers and standards-based SIP proxies
Power
  • 100 to 240 VAC, 50/60 Hz, 12V DC input
  • Average 20W, peak 70W
  • Must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019
Compliance
  • Directive 2014/53/EU (Radio Equipment Directive) for the radio versions
  • Directive 2014/30/EU (EMC Directive) for the non-radio versions Directive 2014/35/EU (Low-Voltage Directive) for the non-radio versions
  • Directive 2011/65/EU (RoHS)
  • Directive 2002/96/EU (WEEE)
  • NRTL approved (product safety)
  • FCC CFR 47 Part 15B (EMC) – Class A
  • FCC CFR 47 Part 15C (RF)
  • FCC CFR 47 Part 15E (RF)
  • FCC Listed (radio equipment)
